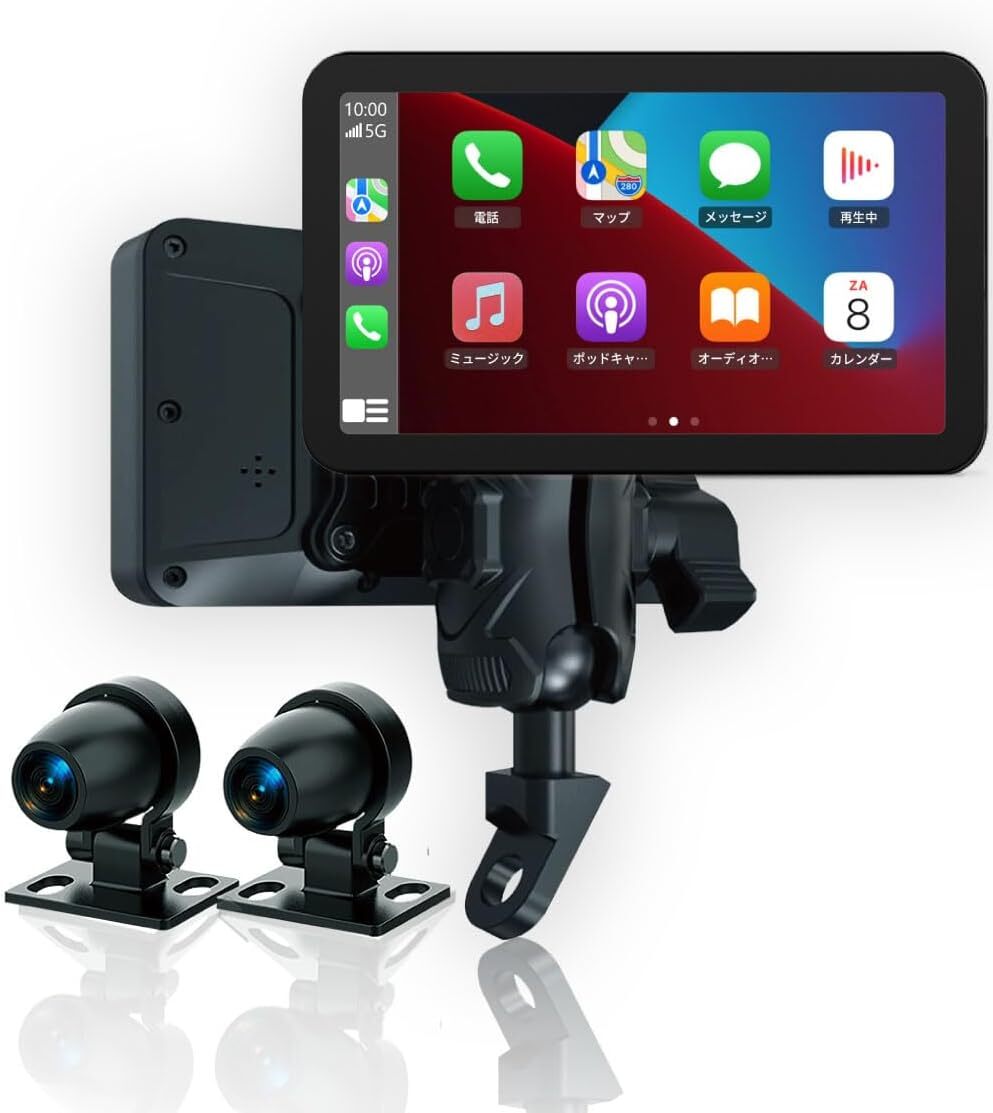

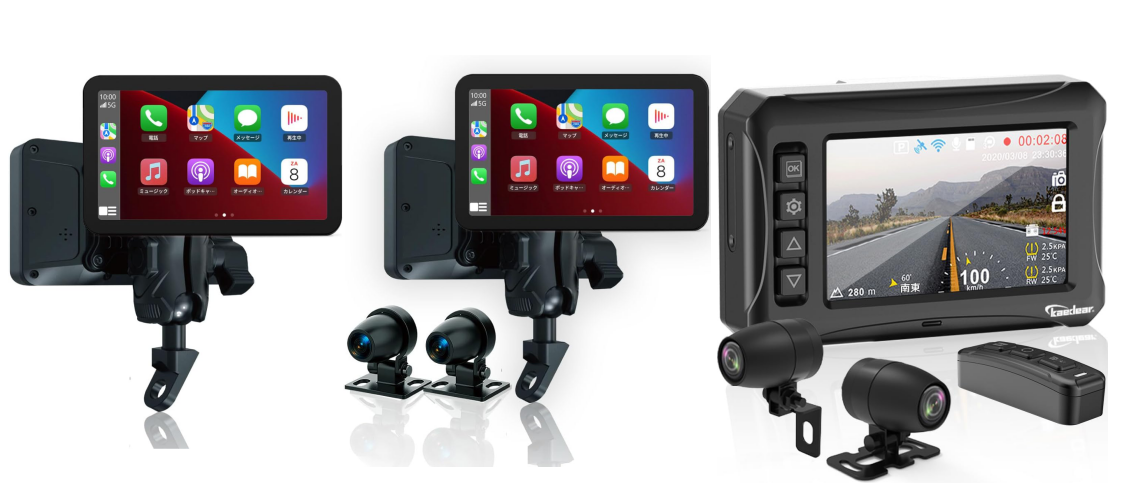

【3 types】Kaedear Smart Display KDR-D11/Drive Recorder KDR-D21,KDR-D801-BSD

Greetings:
Thank you for visiting. We can also handle items that are not listed in the shop.
If you have any requests for additional products, bulk orders, or any other requests, please contact us by message before purchasing. Thank you

▼ Product Description

Condition: New

DescriptionClick here for our all products
ーーーーーーーーーーーーーーーーーーーーーーーーーーーーーー

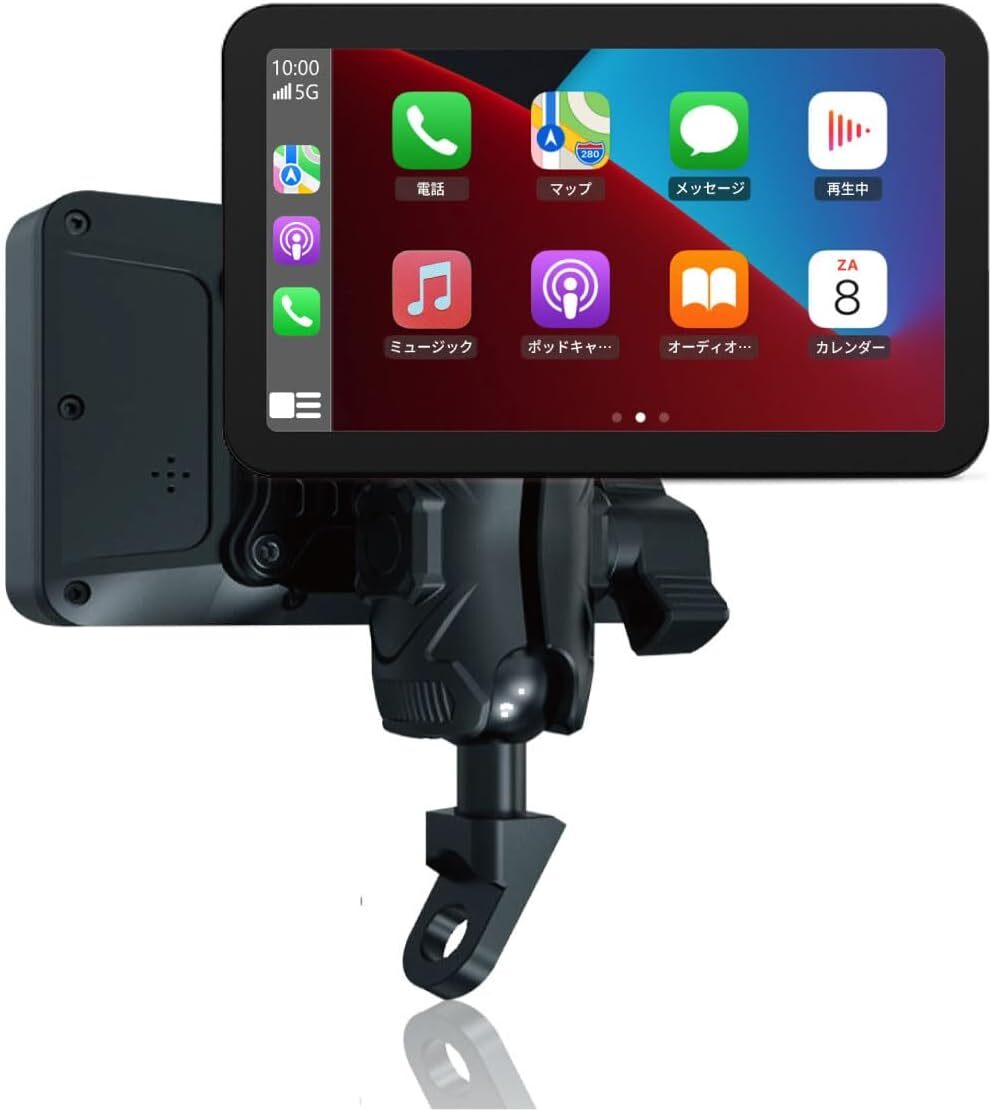

▼KDR-D11 (Smart Ride Display)
【Smart Ride Display]】
■Carplay/AndroidAuto compatible ・5Ghz Wi-Fi (indoor mode W52/outdoor mode W56DFS) ・Switching function between indoor mode and outdoor mode.
Apple Carplay compatibility requirements: iPhone 6S or higher/iOS13 or higher
Android Auto compatibility requirements: Android 11 or higher
■Bluetooth: 5.0
■Carplay/Android Auto connection method: When Bluetooth is connected to a smartphone, it connects to Wi-Fi and Bluetooth is automatically disconnected. The second and subsequent connections will be made automatically.
Intercom connection method: Use the Bluetooth connection with your smartphone. *Listen to the voice of this unit through the intercom (helmet speaker) or talk with the intercom about the calls operated by this unit.
Technical Standard Conformity Certification Number: R210-225497

【Monitor】
■Monitor: 4.5 inches ・Select a compact monitor that does not cramp the handlebar area.
Main unit dimensions: 119.2 x 73.4 x 26.1 mm
Main unit weight: 190g
■Waterproof level: IP67 ・The monitor, camera, and GPS are all waterproof and unaffected by driving in the rain.
■LCD: IPS touch panel ・Touch sensitivity is good and does not react easily to rain.
Brightness: 1000Nit ・Bright and easy to see images even when touring in the daytime.
Supported temperature: -20 to 70℃ ・Heat sink on the back of the monitor exhausts heat efficiently.
■Speaker：8W
■Mount：1-inch ball/vibration-absorbing air mount ・Reduces shock and engine vibration and improves product life. Compatible with the 1-inch ball mount you already have to meet various steering wheel conditions.
Operating voltage/power: DC9-30V/4W
■Power harness: 250cm (plus, minus) - Connect the plus to ACC power.

【Other setting functions】
■Volume adjustment
■Brightness adjustment
■Audio output Audio output can be switched between smartphone (intercom) and this unit's monitor *This unit's monitor is a visual projection of car play and android auto output from a smartphone. iOS and other firmware updates will change the limitations and specifications of the apps that can be used. The intercom is connected to the smartphone via Bluetooth, and the monitoring system monitor is connected to the smartphone via Wi-Fi.
BSD rear visual monitoring system (video recognition): Planned as an option *Mirror-integrated BSD warning lights are being planned

【Cautions for use 】
In the case of keyless cars, the frequency may interfere depending on the installation location, and the lamp on the meter may light up.

ーーーーーーーーーーーーーーーーーーーーーーーーーーーーーー

▼KDR-D21 (Smart Record Display)
【Smart Record Display】
■Carplay/AndroidAuto support - 5Ghz Wi-Fi (indoor mode W52/outdoor mode W56DFS) - Switching function between indoor mode and outdoor mode.
Apple Carplay compatibility requirements: iPhone 6S or later/iOS13 or later
■Android Auto compatibility requirements: Android 11 or higher ■Bluetooth: 5.0 ■Carplay/AndroidAuto connection method: When Bluetooth is connected with a smartphone, it connects to Wi-Fi and Bluetooth is automatically disconnected. The second and subsequent connections will be made automatically.
Intercom connection method: Use the Bluetooth connection with your smartphone. *Listen to the voice of this unit through the intercom (helmet speaker) or talk with the intercom about the calls operated by this unit.
Technical Standard Conformity Certification Number: R210-225497

【Monitor】
■Monitor: 4.5 inches ・Select a compact monitor that does not cramp the handlebar area.
Main unit dimensions: 119.2 x 73.4 x 26.1 mm
Main unit weight: 258g
■Waterproof level: IP67 ・The monitor, camera, and GPS are all waterproof and unaffected by driving in the rain.
LCD: IPS touch panel ・Touch sensitivity is good and does not react easily to rain.
Brightness: 1000Nit ・Bright and easy to see images even when touring in the daytime.
Supported temperature: -20 to 70℃ ・Heat sink on the back of the monitor exhausts heat efficiently.
Speaker: 8W
■HUD：Speed/Date/Time/Azimuth/Air Pressure/Altitude/Max Speed
■Mount：1-inch ball/vibration-absorbing air mount ・Reduces shock and engine vibration and improves product life. Compatible with the 1-inch ball mount you already have, for a variety of handle conditions.
Operating voltage/power: DC9-36V/10W - Can be used not only on motorcycles with 12V batteries, but also on 24V battery vehicles such as trucks.

【Wiring】
■Power harness: 200 cm (constant, ACC, minus)
Front camera: 100cm
Rear camera: 290 cm
GPS: 150cm *If you do not want to generate a dark current, connect the two wires (always and ACC) to the ACC power source.

【Drive Recorder】
■Loop recording: 1min/2min/5min ・Constant recording cannot be set to prevent problems. Recording format: Video H.264 TS/Photo JPEG - MP4 cannot be set to prevent problems.
Event recording: When the G sensor detects an impact, the recording file is automatically locked to prevent overwriting.
■Parking surveillance function: Standby 0.001W, Recording 10W, Shooting time 10 sec.
MicroSD card: Max. 256GB/UHS-I U3
■Recording and playback method: This unit/PC/smartphone app (Kaedear DriveRecorder System)
GPS: 5hz dual band ・Get twice as much location information as single band
■Recording: ON/OFF
Time stamping: ON/OFF

【Camera】
■ Image sensor: SONY STARVIS IMX-307 ・Excellent night vision, recording images brighter and clearer than the naked eye at night.
■Viewing angle: 136°.
■F value: 1.8
■Resolution: FHD (1920 x 1080p/2 million pixels)
■Frame rate: 27.5 fps - Compatible with nationwide LED signals
■Brightness/Darkness correction: HDR/WDR ・Blackouts due to backlighting and blackouts in tunnels are less likely to occur.

【Other setting functions】
■Air pressure sensor: Air pressure unit KPA/Bar, temperature unit °C/°F - Compatible with automotive industry standard KPA
Rearview camera: Mirror image ON/OFF
■Volume adjustment
■Brightness adjustment
■Audio output Audio output can be switched between smartphone (intercom) and this unit's monitor *This unit's monitor is a visual projection of car play and android auto output from a smartphone. iOS and other firmware updates will change the limitations and specifications of the apps that can be used. The intercom is connected to the smartphone via Bluetooth, and the monitoring system monitor is connected to the smartphone via Wi-Fi.

【Cautions for use】
This unit does not guarantee all driving records, and problems such as not recording the required driving records may occur due to various conditions such as the condition of the microSD card or the strong impact of an accident.
Please use this unit only for collecting records, and store data on a separate recording medium. After driving, transfer the necessary recorded data to another recording medium as soon as possible.
The microSD card must be periodically formatted or replaced with a new one in order to overwrite it repeatedly.
Please be sure to secure the air pressure sensor using the double nut principle, using a non-loosening nut. After fixing, be sure to check for air leaks using a mist sprayer with a drop of detergent in water.
A microSD card that does not meet the specification requirements or a used microSD card may cause various malfunctions such as freezing or restarting.
GPS positioning is affected by satellite location and the surrounding environment.
To prevent problems, constant recording and recording in MP4 format are not available.

ーーーーーーーーーーーーーーーーーーーーーーーーーーーーーー

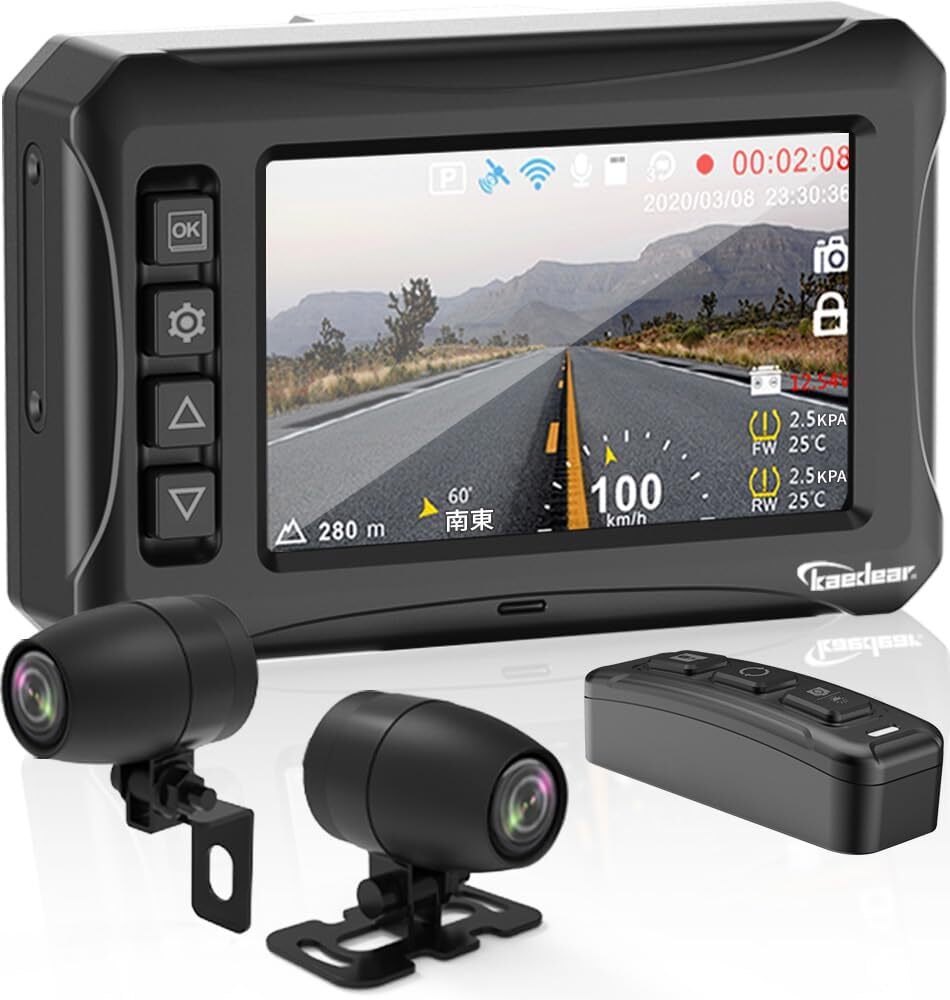

▼KDR-D801-BSD(Drive Recorder)

■UI aimed at sensible and easy-to-understand operability
■System configuration that prevents file loss
■Camera mount is made from scratch from strong and durable aluminum alloy.
■Tire temperature and pressure can be checked in real time by air pressure sensor (KPA)
■BSD rear visual monitoring system alerts you to danger with light (video recognition)
■Bank angle meter with gyro sensor
■GPS speedometer and warning function unaffected by tire wear
■The latest UI makes it easy to understand how to play back recorded data
■Waterproof level equivalent to IP67 that has passed water pressure tests
■Can also be used as a rearview monitor
■Voltmeter equipped
■Caedia App support allows saving to your smartphone via Wi-Fi without removing the microSD card
■Strong camera mount
■Wireless remote control included (CR2032)
■Parking monitoring function
■File lock assistance by G sensor
■Delay function allows super capacitor setting and memory for shooting after vehicle has been alighted
■Built-in microphone for monitoring the main unit

【IMX307 Starvis】
The SONY STARVIS IMX307 image sensor with HDR/WDR compatibility is used to compensate for white-out due to backlighting from headlights and black-out when entering tunnels.
It has excellent night vision capability and records nighttime images brighter and clearer than the naked eye. The 150° wide-angle lens is used.

【Product Specifications】
■microSD card: Class 10/UHS-I/U3/Up to 128GB *Licensed and authorized card (not included)
■Main unit monitor: 3.5 inches (housing size 114 x 74 x 37 mm)
■Remote controller: 75mm x 30mm x 24mm
■Wiring (main unit side + extension cable + component side): Front camera 50cm+90cm+60cm, rear camera 50cm+220cm+30cm, BSD lamp 50cm+70cm, vehicle 12V adapter 50cm+250cm, USB harness 50cm+30cm
■Camera: F1.8 aperture, 150° angle, 6G full glass lens + AR optical film
■Resolution: HD 2.0 megapixels (1920P x 1080P) / 27.5 FPS
■File Format：H.264/TS
■Vehicle 12V adapter: 12-30V (always + ACC + minus)
■USB harness：5V2A
■Supportable temperature：-10 to 70
■Waterproof level: IP67
■GPS: Built-in monitor
■Wi-Fi: For application connection (construction design certification number R219-239359)
